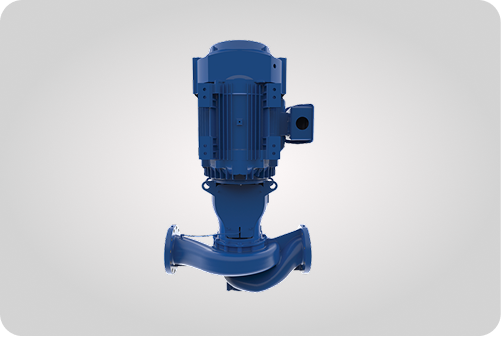

Features:

• Offered in two configurations • 1590 Close Coupled • 1590 Split Coupled
• New Ductile Iron ASTM A536 Casings provide higher strength and durability
• New 316 Stainless Steel impellers provide less corrosion, additional chemical resistance and durability
• New shared hydraulics with Pentair Fairbanks Nijhuis 1600 End Suction Pumps to streamline inventories
• Working pressures up to 175 psi
• New standard bracket design to accommodate common C-Face NEMA rated motors. (Pentair Fairbanks Nijhuis 1590 Split coupled only)
• Patented Seal Replacement mechanism allows servicing without removing motor and casing, one man operation. (Pentair Fairbanks Nijhuis 1590 Split coupled only)
• Mounting directly in a pipeline, no pipe support, special tools and flexible connectors required.
• Factory hydro test
• Stainless steel ASTM A582 Type 416 shaft
• 303 Stainless Steel mechanical seal with Buna-N, ceramic and carbon parts
• NSF372 listing low lead content

More:

Capacity to : 2.000 GPM (2.725 m³/hr)
Heads to : 370 feet (112 m)
Temperatures to : 275°F (135°C)
